Activa H-Smart

Technical Specifications

Activa H-Smart

The technical specifications and design of the vehicle may vary according to the requirements and condition without any notice. Active meets Bharat Stage VI norms . Product shown in the picture may vary from actual product available in the market. Accessories shown in the picture are not part of standard equipment. The technical specifications mentioned are for Smart Key variant. All features may not be part of all variants.

BODY DIMENSIONS ENGINE TRANSMISSION TYRES & BRAKES FRAME & SUSPENSION ELECTRICALS

Body Dimensions
Overall Length 1833 mm
Overall Width697 mm
Overall Height 1156 mm
Wheel Base1260 mm
Ground Clearance162 mm
Seat Length692 mm
Kerb Weight1. Std & Dlx: 106 kg
2. Smart: 105 kg
Fuel Tank capacity5.3 L

Engine
Type4 Stroke, SI Engine
Displacement109.51 cc
Max Net Power5.77kW @ 8000 rpm
Max Net Torque8.90 Nm @ 5500 rpm
Bore47.000 mm
Stroke63.121 mm
Fuel SystemPGM-FI
Compression Ratio10.0:1
Air Filter TypeViscous Paper Filter
Starting Method1. Std & Dlx: Kick/Self
2. Smart: Self

Transmission
TypeAutomatic (V-Matic)

Tyres & Brakes
Tyre Size (Front) 90/90-12 54J (Tubeless)
Tyre Size (Rear) 90/100-10 53J (Tubeless)
Brake Type(Front)Drum
Brake Type(Rear)Drum

Frame & Suspension
Frame TypeUnder Bone
FrontTelescopic
Rear3-Step Adjustable Suspension (Unit Swing)

Electricals
Battery12V 3.0 Ah (MF)
Head Lamp1. Std: Halogen
2. Dlx & Smart: LED

Features

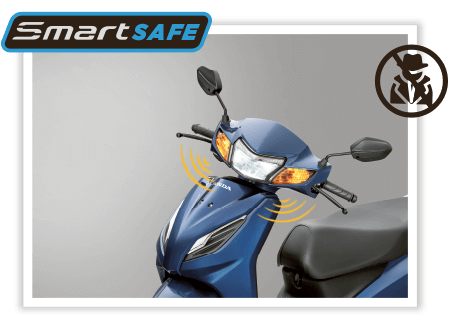

Smart Safe

We’ve ensured that your Activa is always secure, even if it is not in sight. With the Anti-Theft System, you don’t have to think twice about locking your ride, the Smart Key takes control over the protection of your scooter by activating the Immobilizer function when the Smart Key goes beyond the 2 meter range of your Activa.

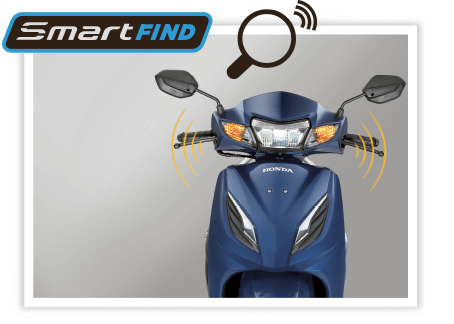

Smart Find

It’s a hassle when one has to go looking for their ride in a parking lot or a crowded place among an array of other two-wheelers, or even in low-light conditions. With the Smart Key, this trouble is taken care of. All you have to do is, click on the Answer Back Button on your key, and all the four winkers of your Activa will blink twice. It can be easily located even if it is as far as 10 meters!

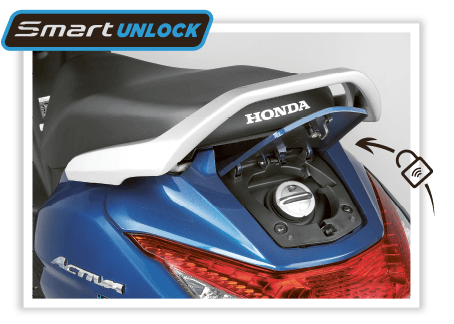

Smart UNLOCK

Your two-wheeler key isn’t always handy, but with Honda Smart Key, you won’t need the key in hand. When the Smart Key is within the 2 meter range of Activa, you push and rotate the knob to perform various operation like your seat, fuel cap and handle can all be unlocked just like that.
Smart Start

Here’s a way to start your ride that doesn’t even require you to take out the key from your pocket! Once the key is within 2 meters of your Activa, and activated, all you have to do is push the knob – the LED Smart Key indicator on the speedometer will come on – then just rotate the knob to turn on the ignition and start the engine with Start/Stop switch.

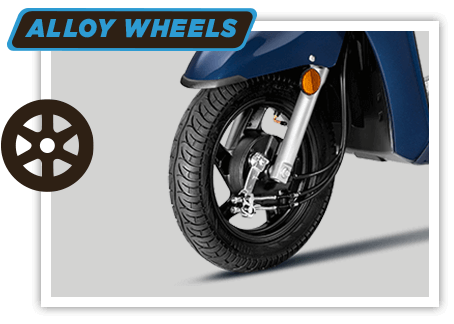

Alloy Wheels

With every rotation, these wheels make a statement that is strong yet stylish.

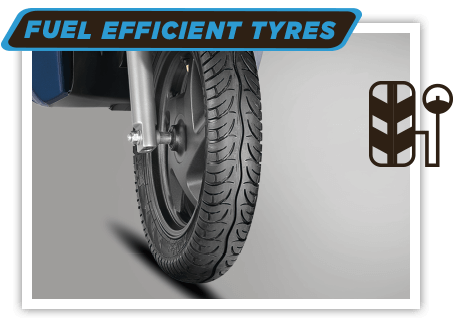

Fuel Efficient Tyres

Honda has developed a new Tyre Compound Technology that greatly reduces rolling resistance by maintaining the road grip. The tyres are tubeless, so there’s no immediate deflation in case of a puncture.
