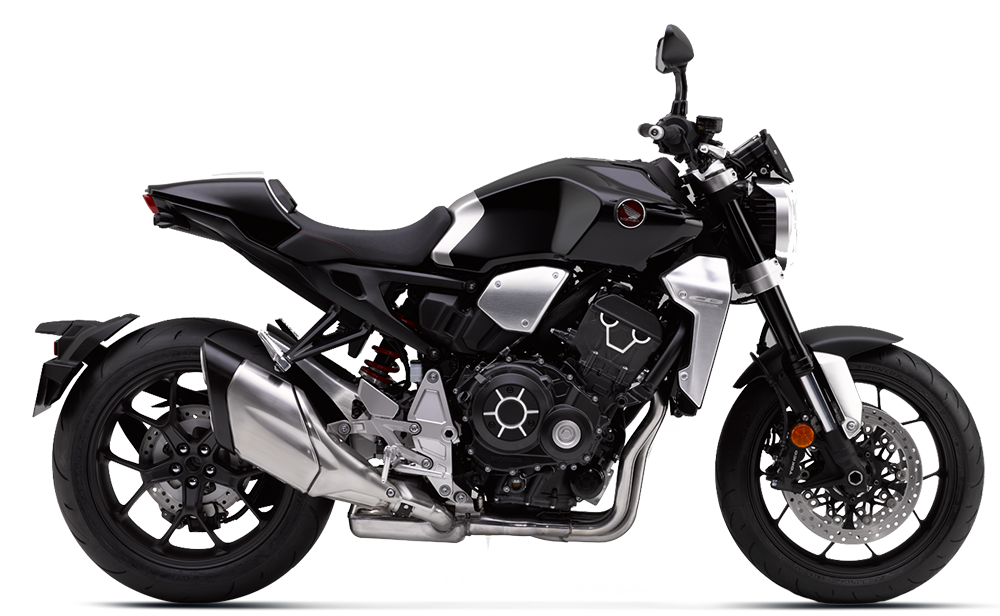

CB1000R

Technical Specifications

Impeccable performance, unmatched style and an unforgettable legacy – all of it comes together with the magnificent CB 1000R. With a brilliant new Neo Sports Café design that harmoniously blends an exalted tradition and craftsmanship with ultra-modern power and styling, this Japan crafted warhorse from the Honda sporting stable creates a category of Sports Roadsters.

For the riders who love to take their machines to their full potential, here’s an iconic machine that delivers the ultimate joy of riding. After all, it’s more than just a bike. It’s pure emotion.

Engine Fuel & Electrical System Drivetrain & Frame Chassis & Suspension Wheels Brakes & Electrics

Engine
Type	Liquid-cooled 4-stroke 16-valve DOHC inline-4
Displacement (cm3)	998
Bore x Stroke	75 x 56.5mm
Compression Ratio	11.2 : 1
Max. Power Output	92kW @ 10,000rpm
Max. Torque	99Nm @ 7,750rpm
Oil Capacity	3.6 litres

Fuel & Electrical System
Carburation	PGM-FI electronic fuel injection
Fuel Tank Capacity	17L (including 4-litre LCD-indicated reserve)
Fuel Consumption	Electric
Starter	11.2 : 1
Battery Capacity	12V/8.6AH
ACG Output	340W

Drivetrain & Frame
Clutch Type	Hydraulically actuated clutch
Transmission Type	6-speed
Primary Reduction	1.76
Final Drive	#530 O-ring sealed chain
Type	Mono-backbone; Cast Aluminium

Chassis & Suspension
Dimensions (L x W x H)	2,105mm x 805mm x 1,095mm
Wheelbase	1,445mm
Caster Angle	25°
Trail	98.77mm
Seat Height	825mm
Ground Clearance	130mm
Kerb Weight	222kg (F: 108kg; R: 114kg)
Type Front	43mm inverted HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm cushion stroke
Type Front	Monoshock with gas-charged HMAS damper featuring 10-step preload and stepless rebound damping adjustment, 128mm axle travel

Chassis & Suspension
Type Front	Hollow-section 4-spoke cast aluminium
Type Rear	U-section 4-spoke cast aluminium
Rim Size Front	17M/C x MT3.5
Rim Size Rear	17M/C x MT5.5
Tyres Front	120/70 ZR17M/C (58W)
Tyres Rear	180/55 ZR17M/C (73W)

Brakes & Electrics
ABS System Type	Combined-ABS
Type Front	310 x 4.5mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads
Type Rear	256 x 5mm hydraulic disc with dual-piston caliper,*Combined ABS and sintered metal pads
Headlight	12V; 55W(Low) / 60W(High)

Features

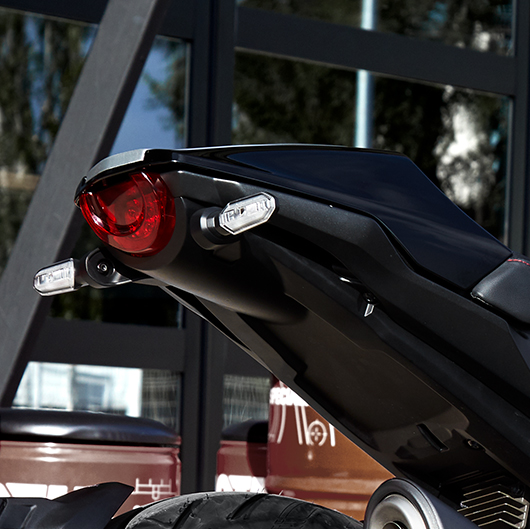

COMPACT YET IMPACTFUL STYLING

The compact style at the rear end is accentuated with an impressive LED Tail Lamp. Mounting the shallow, it gives the seat gives the rear a short tail profile. The dual-layer lens adds a sense of depth to the light from the eclipse shaped ring.

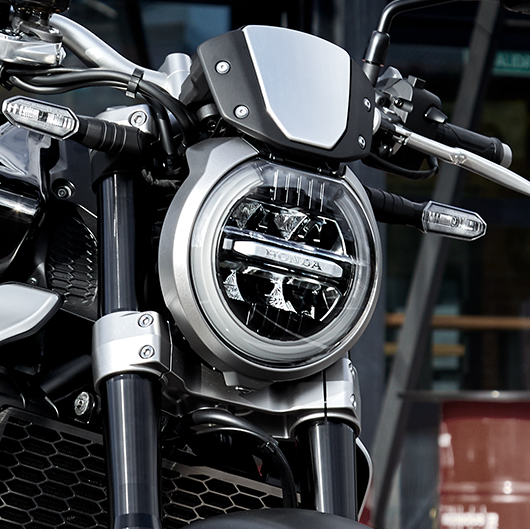

RETRO STYLING MEETS MODERN AESTHETICS

An iconic element of the Neo Sports Café range – the eclipse-shaped ring is the home to a thin low-beam and high-beam headlights, with a Honda logo-embossed bar positioned in between. To keep its mass centralized, the entire headlight housing is positioned within the front fork.

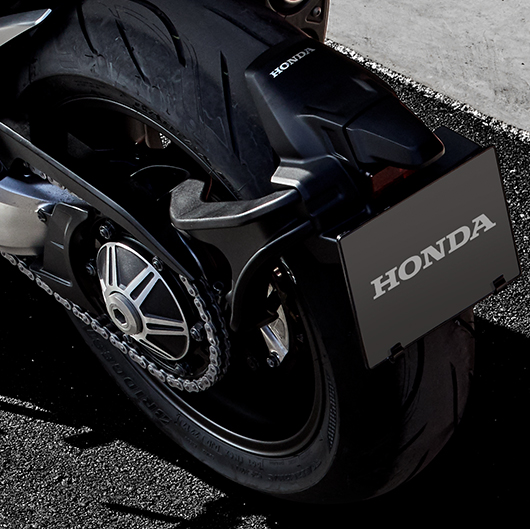

SEAMLESS STYLING

The CB 1000R is styled to impress. While the Swing Arm-Mounted Rear Fender adds to the its compact stance, the Rear Fender positioned atop the Single-Sided Swing Arm further builds on the signature short tail profile.

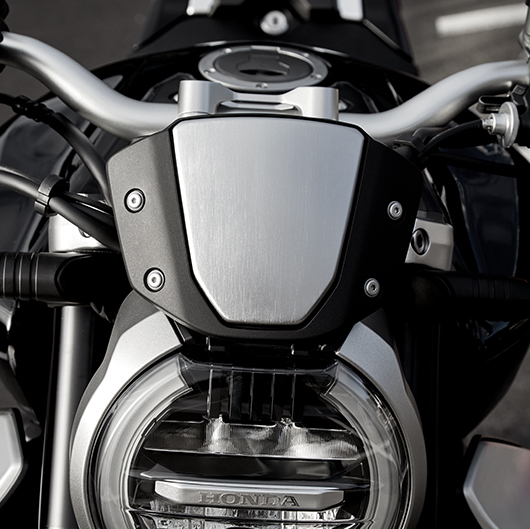

METER VISOR

The compact aluminum Meter Visor is designed to match the headlight housing for a seamless styling around the front.

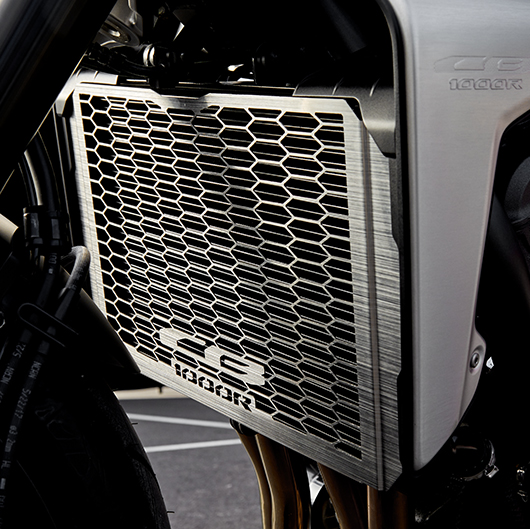

RADIATOR GRILLE

Modeled with the CB 1000R logo, the honeycomb mesh style Radiator Grille covers the entire radiator.

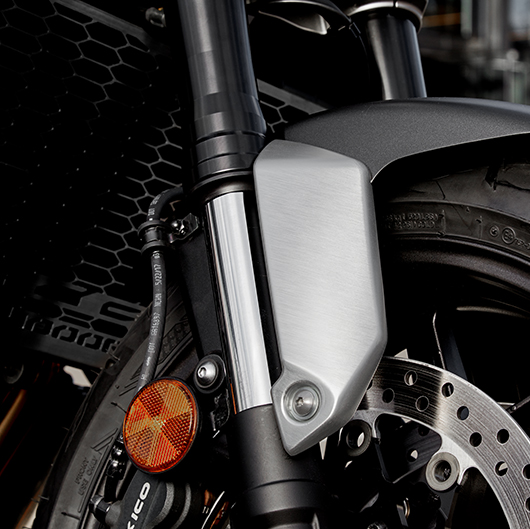

ALUMINIUM FRONT FENDER COVER

Aluminium Front Fender for the same integration looks as the side.
HEATED GRIPS

The CB 1000R sports Heated Grips that ensure superior heating and an excellent control over the handle bar. It also enables the riders to adjust heating up to 3 levels with a Grip Switch.

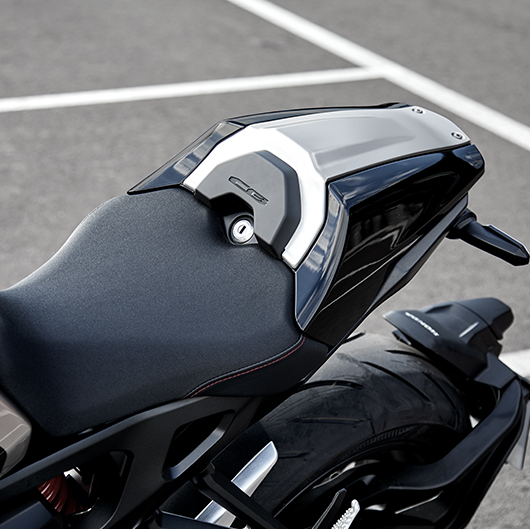

SINGLE SEAT COWL

The stunning aluminum-finish Single Seat Cowl highlights the short tail profile of the CB 1000R.

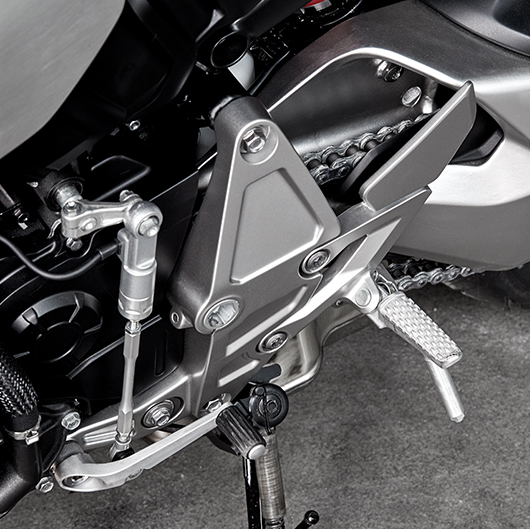

QUICK SHIFTER

Shift Assist System to help rides blip the thottle during gearshifts or downshifting. Allows gear changes using only the shift pedal without having to use the clutch.

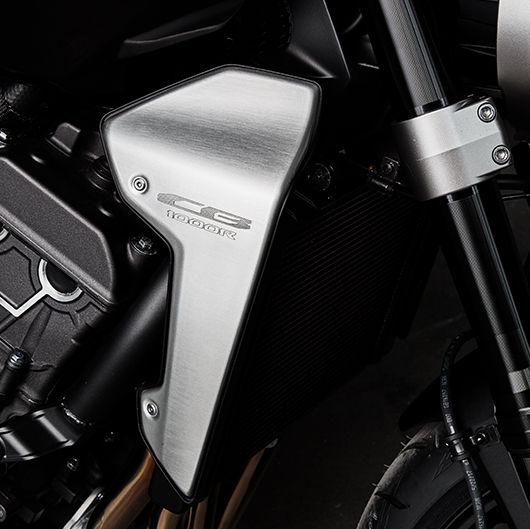

PRACTICALLY ELEGANT

The CB 1000R is sophisticatedly designed to ensure ride practicality. The fresh Air Intakes around the rider’s knees connect through the vents lower down on the frame to enhance the rider’s comfort. The aluminum Radiator Shroud has been machined with a metallic CB 1000R stamping and so is the Air Cleaner Coverto ensure elegance across surfaces.
INTUITIVE LCD METER FOR INTELLIGENT RIDING

Arranged as an eclipse shaped ring, the LCD Meter on the CB 1000R has a large display interface that intuitivelyconnects with the rider. It sports multi-colored indicator rows featuring eight colored icons to convey to essential riding data like - shift-timing, eco-mode, selected gear and riding mode.

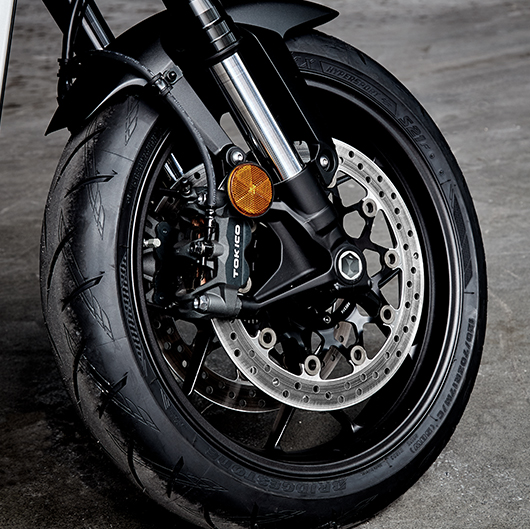

ENGINEERED TO BE EXTREME

Based on the Separate Function Front Fork design, the right fork comprises solely of a spring, while the left fork features a spring and hydraulic damper with high-response big piston. Stopping power at the front comes from 201 mm discs and radial mount 4-piston monobloc calipers, enabling you to take on any extreme.
